Compact S-Band TT&C Antenna

Get a quote

Description

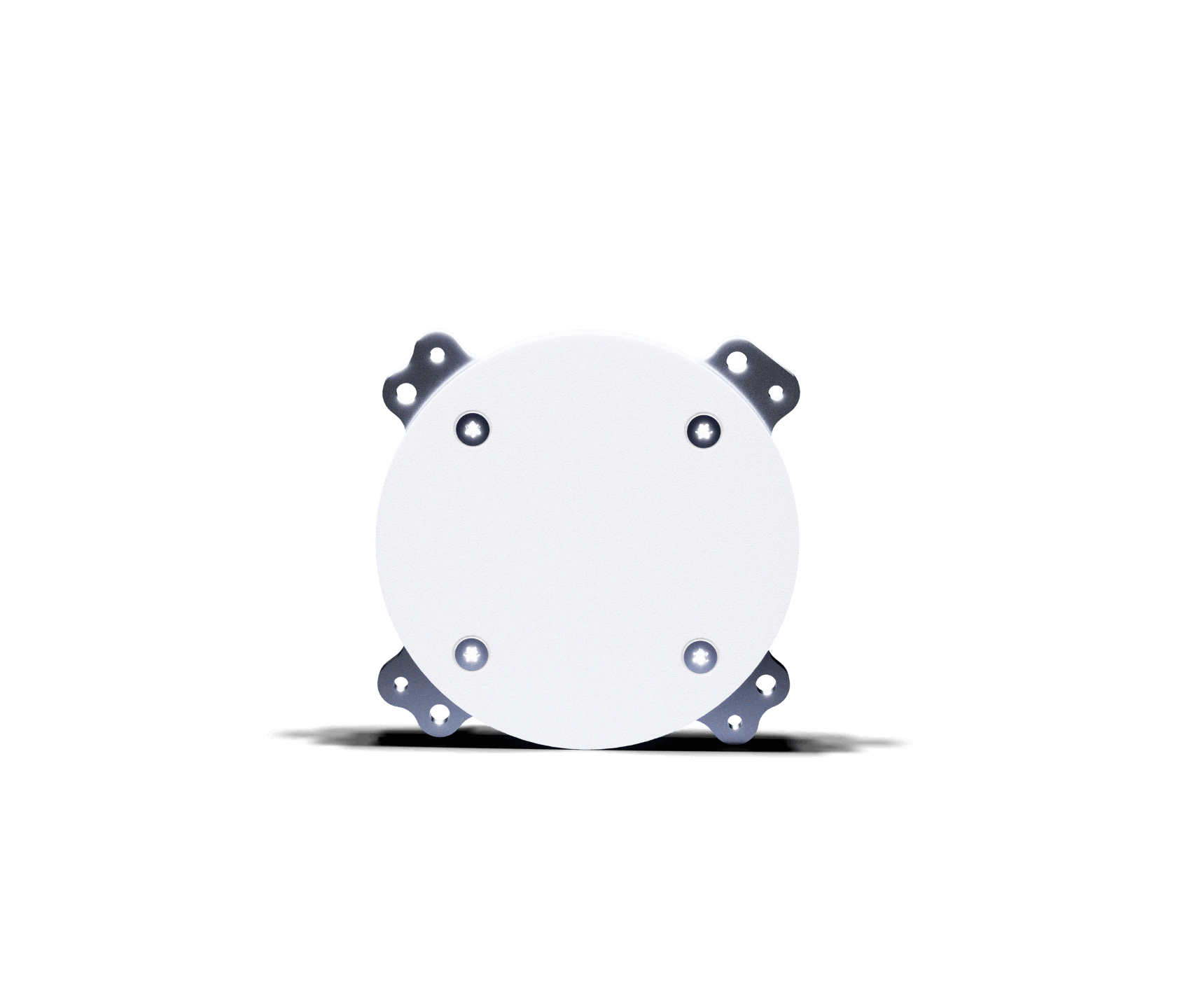

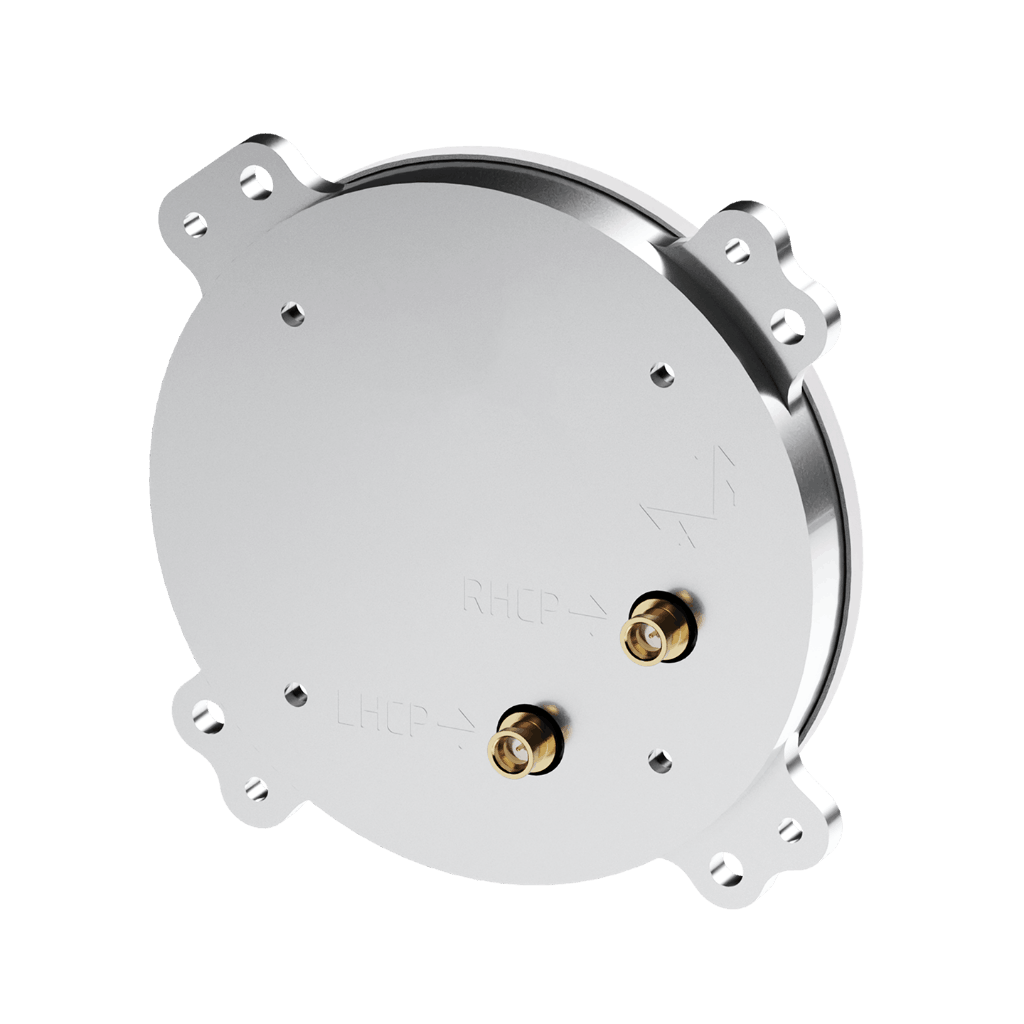

This Compact S-Band antenna is our latest antenna generation for telemetry, tracking & control. It is the optimized compact version of our previous S-Band TT&C Antenna. It differs from its predecessor with a dual-circular-polarization that can be used simultaneously on the dedicated connectors (SMAs or SMPs according to your needs). This S-Band antenna has successfully passed our qualification tests and is now ready to equip your satellites.

This new antenna has been optimized to better communicate anytime, anywhere! Anywaves Compact S-band TT&C antenna features excellent radiation characteristics over a wide frequency band. With a better gain and axial ratio at high elevation angles, you will collect more data, from your satellite or your payload during a pass over your ground station. This antenna brings to you more available and capacitive communication link.

This antenna can withstand harsh thermal environment thanks to a robust design based on our know-how and meca-thermal expertise.

NB : this antenna is compatible with Anywaves Test Cap for S-Band TT&C Antennas

Full Duplex Telemetry & Telecommand
Dual-Polarization

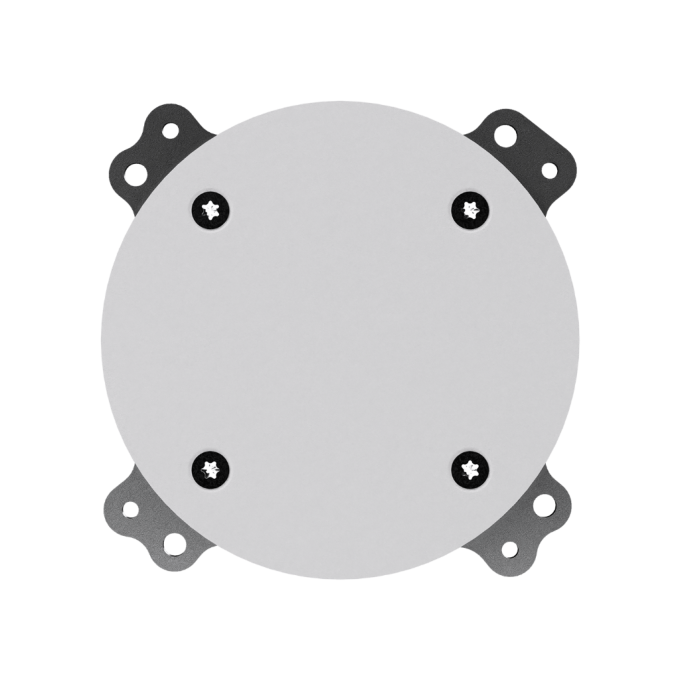

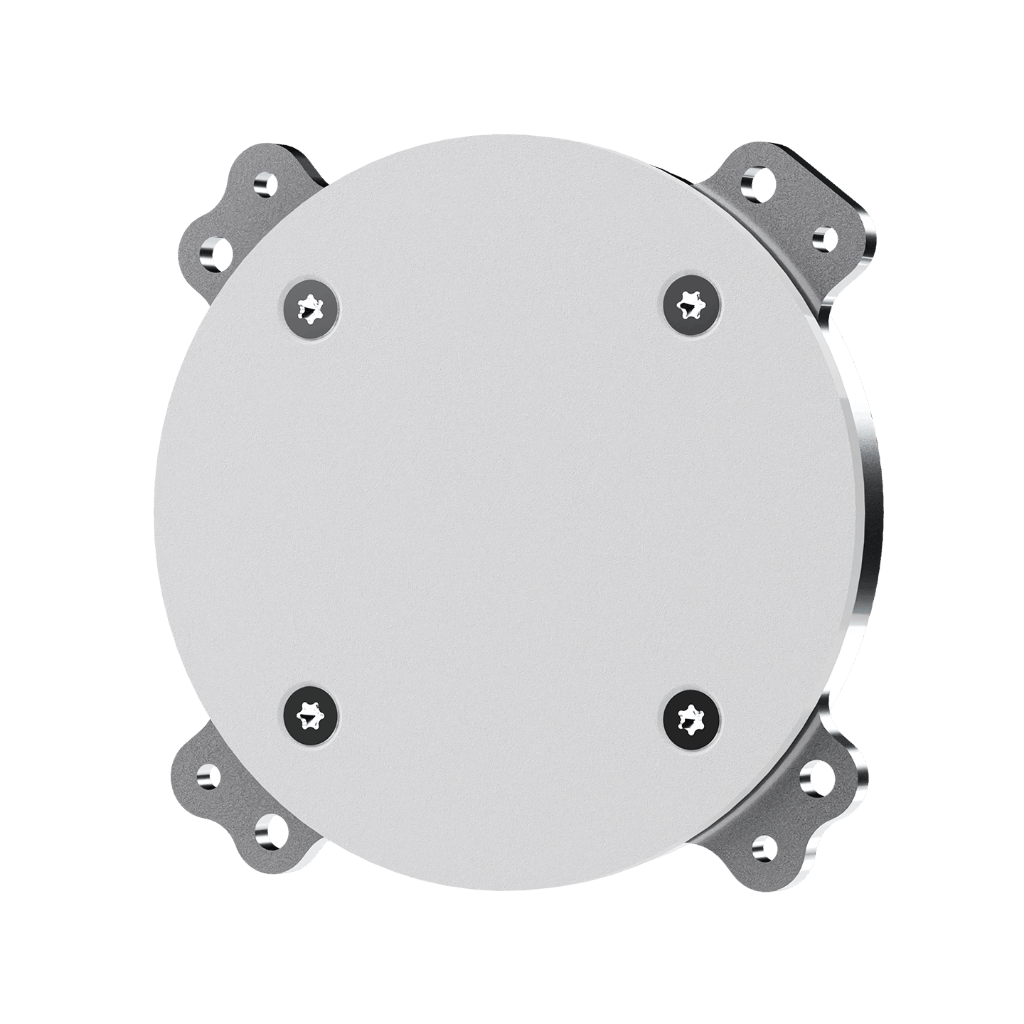

Radome protection against harsh environment
Acceptance Tests included
ITAR Free
Test-Cap compatible

Frequency band

From 1.98 GHz to 2.29 GHz

Polarization

Left and/or Right Hand Circular Polarization

Envelope size

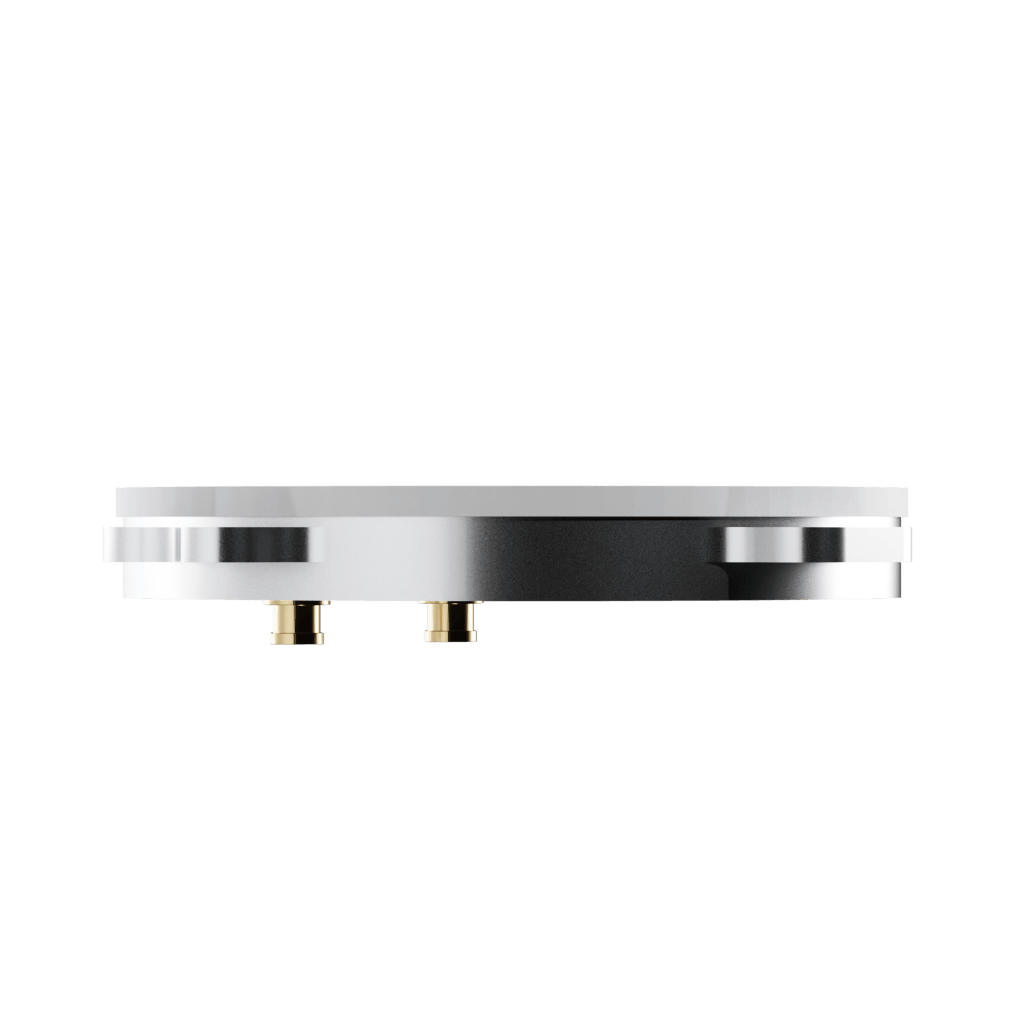

L 70.9 x W 70.9 x H 10.3mm³
Protruding Height: 3.62 mm
(connectors excluded)

Realized gain

> 5.4 dBi @ boresight
> 4.2 dBi @ ± 30°
> 0.5 dBi @ ± 60°

TRL

Mass with RF Load

SMP: <90g +/-5%
SMA: <106g +/-5%

Download the datasheet

Watch a 2min Video Recap

Included services

Complete EIDP

At the delivery of your antennas, you will receive a complete EIDP (End Item Data Package) including:

Acceptance test reports
ICD (Interface Control Document)
Mechanical envelope
User Manual
Certificate of conformity

In-Depth Engineering Support

During the full length of your antennas project, you’ll benefit from an in-depth and tailored support from our experienced engineers. They’ll answer all of your questions and ensure that our antennas meet your missions’ needs.

Further Testing Available On Demand

If needed, we can perform additional on-demand tests on your antennas to guarantee their performance in the specific environment and conditions of your spacecraft.

Specific Requests Analysis With Experts

In the case you need additional information and performance results, our experts can conduct complementary analysis based on your requirements (mechanical, thermal, radio-frequency performances on platform etc.).
