GNSS All-Bands Antenna with LNA integrated card

Description

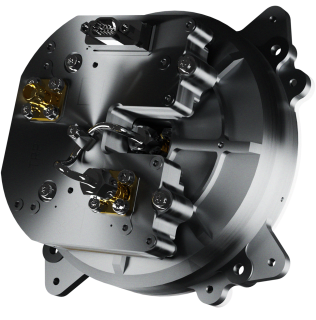

Seeking to reduce cable losses for your navigation and positioning link? Look no further than Anywaves as we offer you a version of our GNSS All-Bands antenna with an integrated active card comprising low-noise amplification and filtering.

In the framework of an European Space Agency Navisp contract, Anywaves' skilled team of engineers has worked on the development of a full qualified antenna for space applications, capable of ensuring high accuracy for positioning and navigation. Today, Anywaves additionally offers engineering activities for the development of an active electronic card to be integrated into the antenna chassis, thereby proposing a miniaturized integrated product ideal for small or mid-size satellite platforms. The RF function of the active electronic card can be tailored to your needs as an experienced team can accompany you from the consolidation of project requirements to the delivery of the developed hardware, ensuring a detailed follow-up of the activities undertaken. Our active boards can integrate low-noise amplification stages and filtering systems to reject spurious harmonics and reduce interference.

Consistently with quality standards adopted by Anywaves, our integrated active cards undergo a rigorous qualification campaign that includes radiation tests customized to withstand the environmental constraints of your satellite mission as well as life testing. The GNSS All-Bands antenna with integrated active card is also mechanically and thermally proven through vibration, shocks, and thermal cycling tests. In addition, customized acceptance tests can be provided as well.

Please note that our Integrated GNSS All-Bands antennas are not a COTS (Commercial Off The Shelf) product. They are custom-made upond demand, hence why we do not have a generic datasheet to provide.

Contact our expert team for more information about our Integrated GNSS All-Bands Antenna today.

Unique GNSS All-Bands antenna on the market

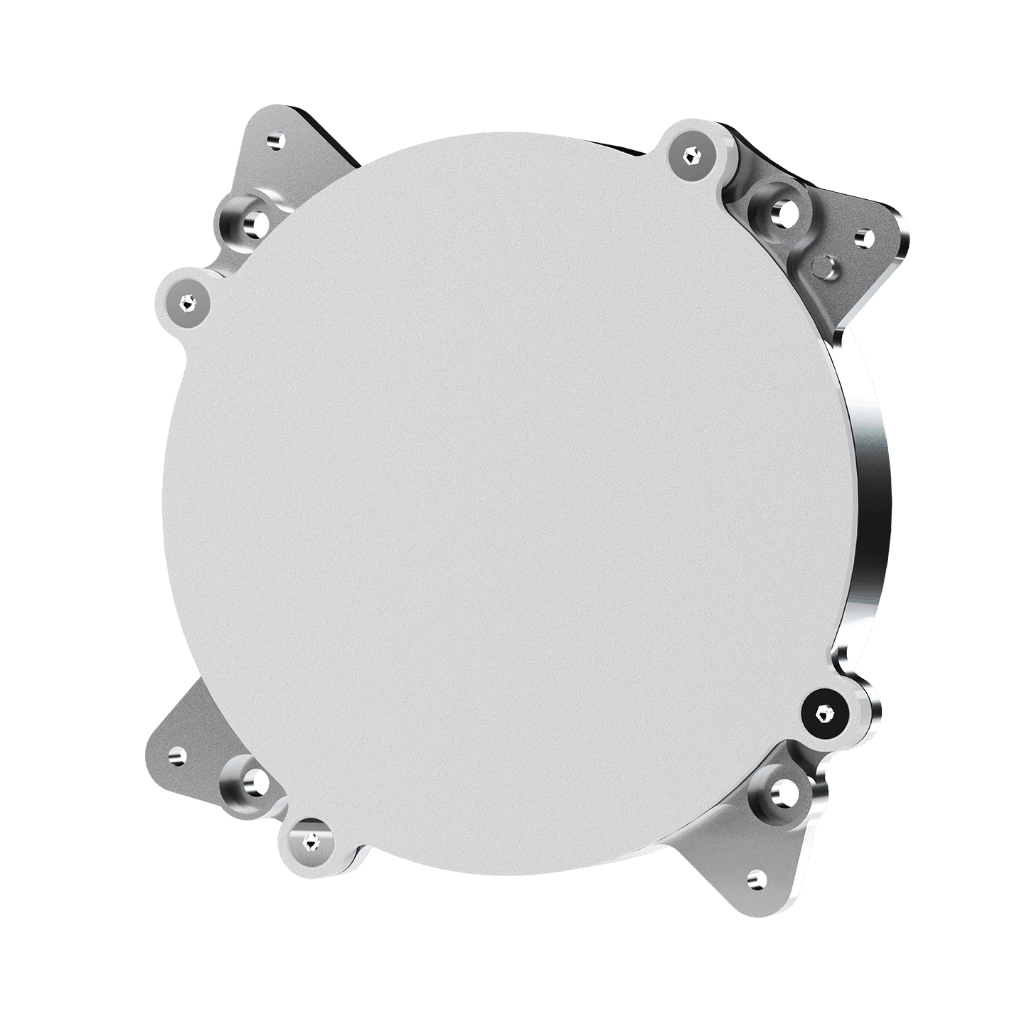

Very stable phase center

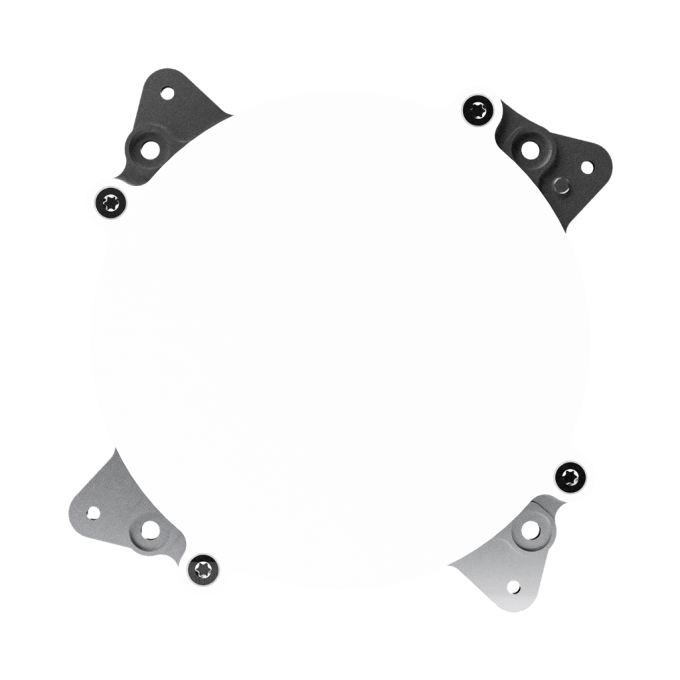

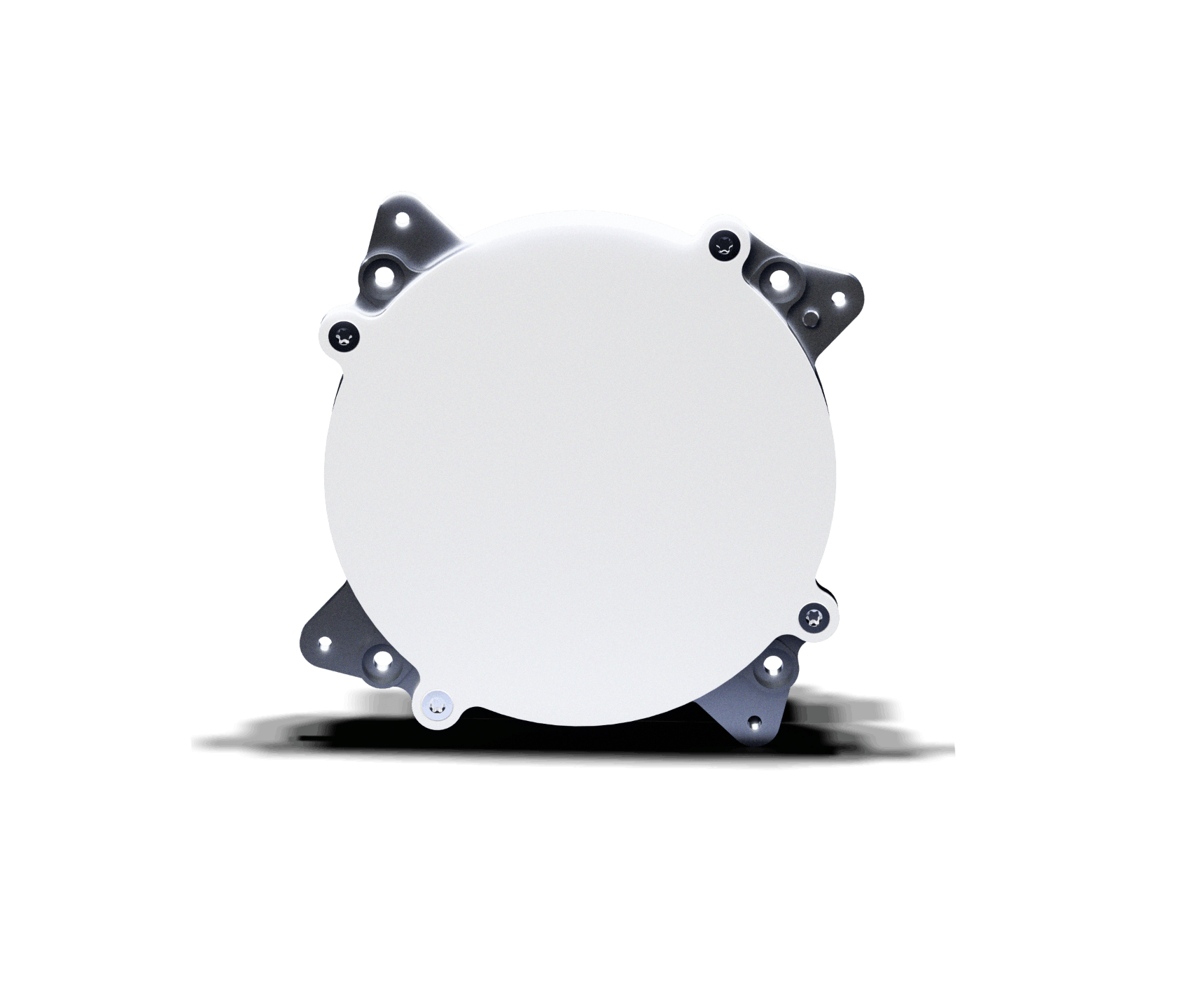

Radome protection against harsh environment

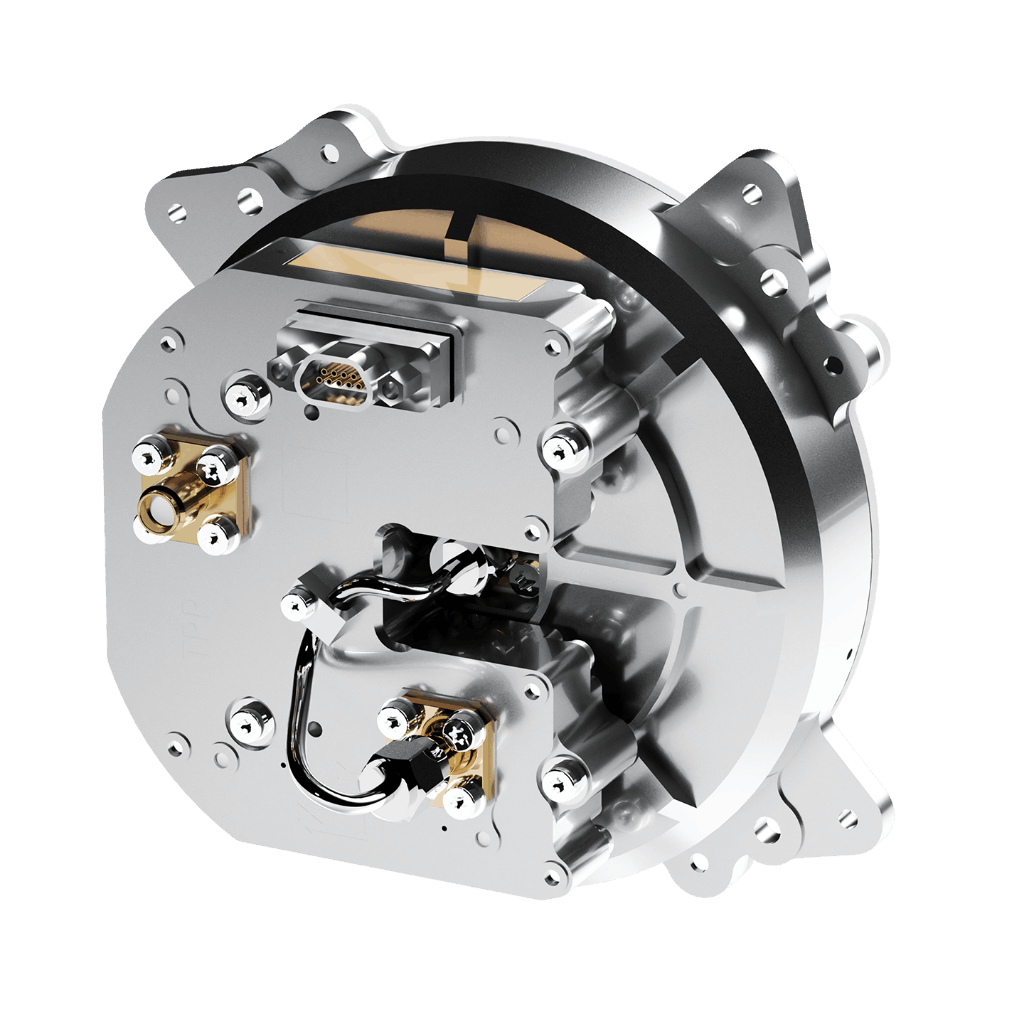

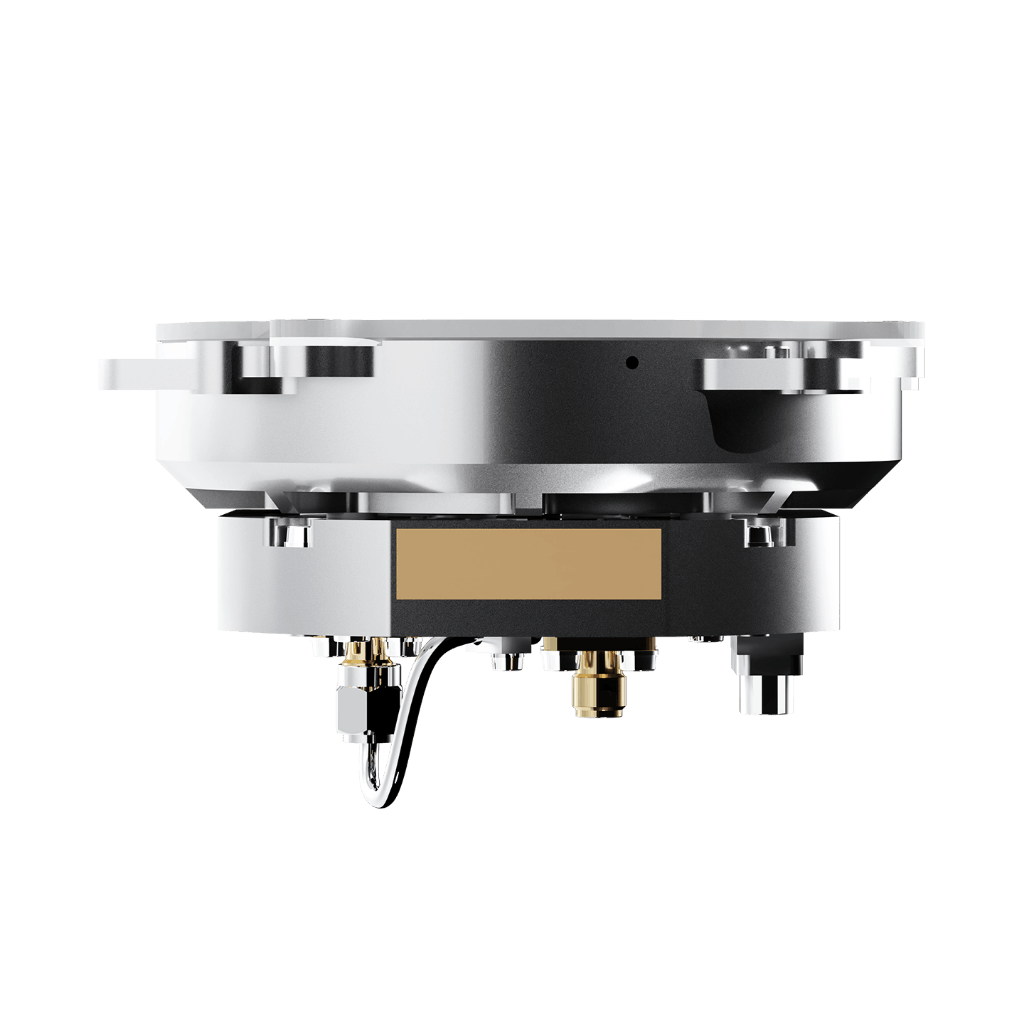

Integrated active electronic board with amplification and filtering
ITAR Free
Test cap compatible

Frequency band

From 1.16 GHz to 1.61 GHz
GPS L1/L2/L5, Galileo E1/E5a/E5b/E6
Glonass G1/G2/G3, Beidou B1/B2a/B2/B3
Inmarsat L-band: 1.525 – 1.559 GHz

Polarization

Right-Hand Circular Polarization

Realized gain

> 0 dBi @ boresight
> -2 dBi @ ± 30°
> -6 dBi @ ± 60°

Compatibility

Test Cap for GNSS All-Bands Antenna

Size

L 99.4 mm x W 99.4 mm x H 22 mm

Relevant feature

Integrated amplification and filtering function

Download the datasheet

Included services

Requirement Definition

At Anywaves, we specialize in delivering custom-made antennas tailored to meet your unique requirements. Our expertise allows us to understand your specific needs and translate them into antenna specifications. We work closely with you to identify key parameters such as frequency bands, gain, beamwidth, mechanical constraints, and environmental considerations. Our team of experienced engineers collaborates with you throughout the process, ensuring that the antenna design aligns precisely with your application’s demands. With our deep understanding of your needs and attention to detail, we guarantee antennas that deliver optimal performance and reliability for your specific use case.

Project Management

Our goal is to ensure a seamless and successful antenna development process. Our experienced spatial project managers are skilled in coordinating all aspects of your custom-made antenna project, from initial concept to final delivery. With meticulous planning, effective communication, and diligent resource allocation, we ensure that your spatial project stays on track through key milestones (PDR, CDR, TRR, TRB…). Our project management expertise enables us to navigate complex challenges, mitigate risks, and provide you with regular updates on project progress.

Technical Expertise

Our team of skilled engineers has extensive experience in antenna design and development, as well as in the space and defense industries. We leverage the latest tools and technologies to develop innovative antenna solutions that meet even the most complex challenges. With our technical expertise, we can optimize key parameters such as gain, bandwidth, radiation pattern, and impedance matching to deliver antennas that excel in your specific application. Moreover, we keep a pragmatic approach in mind and submit our antennas to an extensive testing process in order to mitigate the risks throughout the project.

Extensive Documentation

At Anywaves, we understand the importance of comprehensive and accurate documentation for your custom-made antenna projects. We make sure to create clear and concise documentation that covers all aspects of the antenna design, specifications, testing procedures, and installation guidelines. In addition to our standard EIDP package, we also deliver throughout the project all the design justification that you may need : RF, mechanical, thermal, radiation analyses ; test plan ; test reports… We make sure to deliver documentation that adds value to your project and guarantees that your antenna is compliant to your needs.
